Hybrid Steam Engine

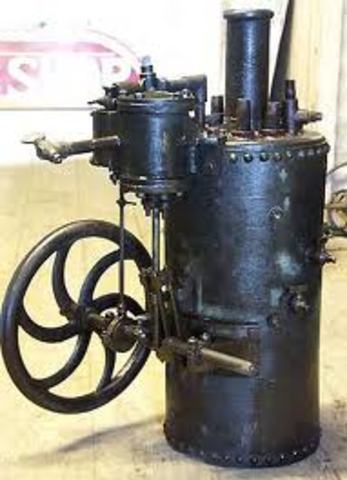

  • Steam engine was invented by Thomas Savery

    Steam engine was invented by Thomas Savery
    *date unspecified
    Powered many things including trains, cars, and factories, etc., and was the backbone of the industrial revolution.
  • Thomas Newcomen creates better steam engine

    Thomas Newcomen creates better steam engine
    *date unspecified
    Newcomen's steam engine differed from Savery's because atmosphereic pressure pumped steam into a cylinder, while Savery's engine was more like a pressure cooker.

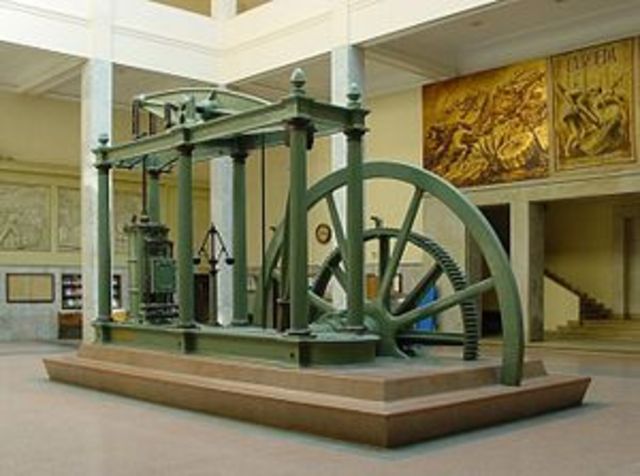

  • James Watt significantly improves engine

    James Watt significantly improves engine
    *date unspecified
    Watt patented a seperate condenser, which allowed, while the cylinder was hot, for the condenser to be cool. This is the steam engine we stikll use today.

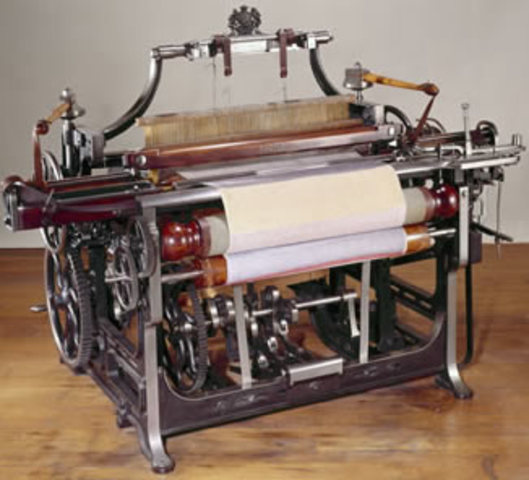

  • Power Loom

    Power Loom
    *date not specified
    Created by Edmund Cartwright, a loom powered by a steam engine, makes weaving cloth much moer efficient.

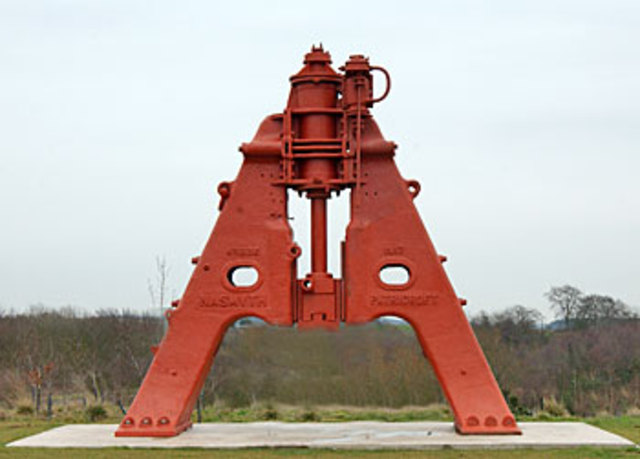

  • Steam Hammer

    Steam Hammer
    *date not specified
    James Nasmyth invented the steam hammer, a large hammer powered by a steam engine used today to shape metal.

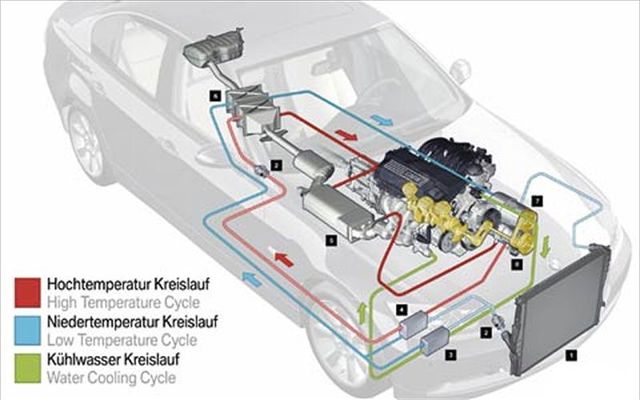

  • First Hybrid Steam Engine Car

    First Hybrid Steam Engine Car
    *day of month not specified
    This car, made by BMW, is called the Turbosteamer, and it increases fuel effeciency by 10%. it works by capturing heat that would otherwise be lost and usingit to power the engine.
  • Honda attemps at steam engine

    Honda attemps at steam engine
    *date not specified
    Honda attemps at a steam powered car, but hasnt released anything yet because it doesnt show muhc effciency.

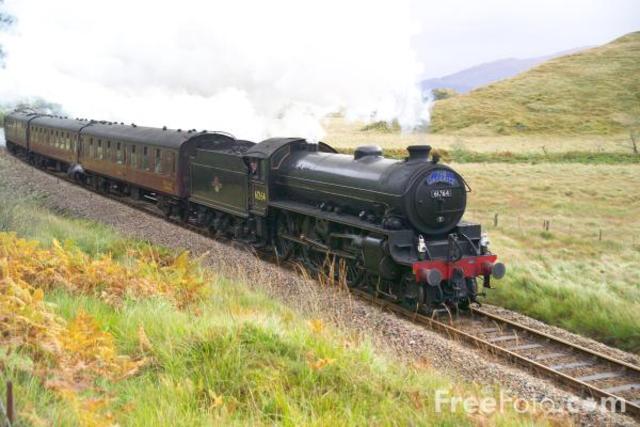

  • Hybrid Steam Engine Today

    Hybrid Steam Engine Today
    Common uses are energy production, steam engine cars, and many other inventions.
