Hewlett and Packard in the garage workshop courtesy HP Archives
Hewlett-Packard is Founded. David Packard and Bill Hewlett found Hewlett-Packard in a Palo Alto, California garage. Their first product was the HP 200A Audio Oscillator, which rapidly becomes a popular piece of test equipment for engineers. Walt Disney Pictures ordered eight of the 200B model to use as sound effects generators for the 1940 movie “Fantasia.” -

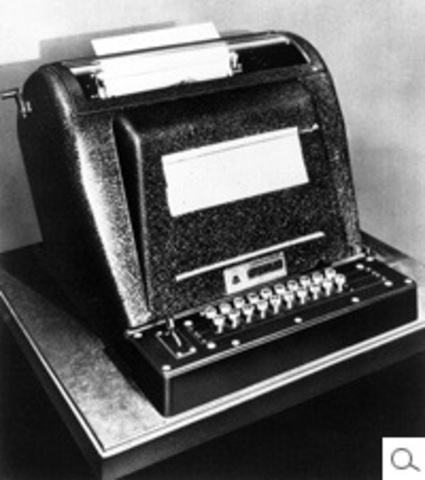

The Complex Number Calculator (CNC)
The Complex Number Calculator (CNC) is completed. In 1939, Bell Telephone Laboratories completed this calculator, designed by researcher George Stibitz. In 1940, Stibitz demonstrated the CNC at an American Mathematical Society conference held at Dartmouth College. Stibitz stunned the group by performing calculations remotely on the CNC (located in New York City) using a Teletype connected via special telephone lines. This is considered to be the first demonstration of remote access computing. -

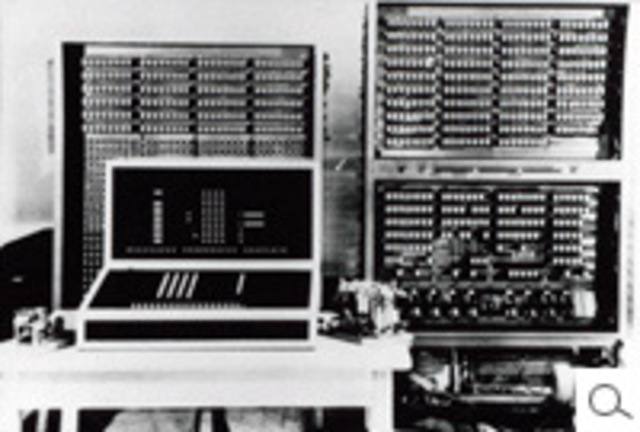

The Zuse Z3 Computer
Konrad Zuse finishes the Z3 computer. The Z3 was an early computer built by German engineer Konrad Zuse working in complete isolation from developments elsewhere. Using 2,300 relays, the Z3 used floating point binary arithmetic and had a 22-bit word length. The original Z3 was destroyed in a bombing raid of Berlin in late 1943. However, Zuse later supervised a reconstruction of the Z3 in the 1960s which is currently on display at the Deutsches Museum in Munich. -

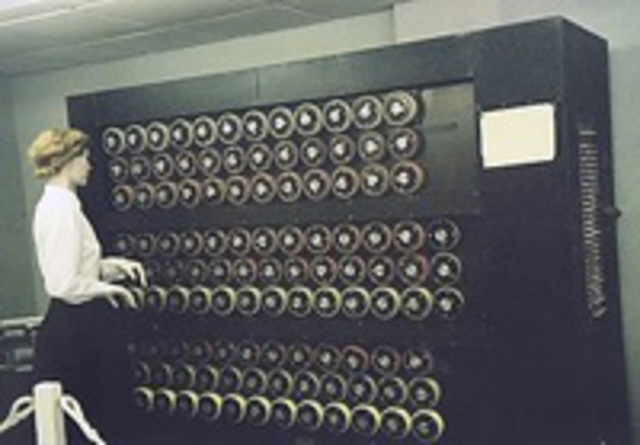

Bombe replica, Bletchley Park, U.K.
The first Bombe is completed. Based partly on the design of the Polish “Bomba,” a mechanical means of decrypting Nazi military communications during WWII, the British Bombe design was greatly influenced by the work of computer pioneer Alan Turing and others. Many bombes were built. Together they dramatically improved the intelligence gathering and processing capabilities of Allied forces. [Computers] -

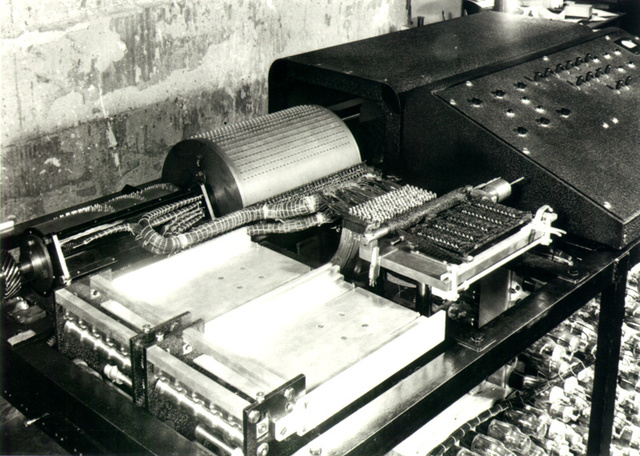

The Atanasoff-Berry Computer
The Atanasoff-Berry Computer (ABC) is completed. After successfully demonstrating a proof-of-concept prototype in 1939, Atanasoff received funds to build the full-scale machine. Built at Iowa State College (now University), the ABC was designed and built by Professor John Vincent Atanasoff and graduate student Cliff Berry between 1939 and 1942. The ABC was at the center of a patent dispute relating to the invention of the computer, which was resolved in 1973 when it was shown that ENIAC co-desi -
Whirlwind installation at MIT
Project Whirlwind begins. During World War II, the U.S. Navy approached the Massachusetts Institute of Technology (MIT) about building a flight simulator to train bomber crews. The team first built a large analog computer, but found it inaccurate and inflexible. After designers saw a demonstration of the ENIAC computer, they decided on building a digital computer. By the time the Whirlwind was completed in 1951, the Navy had lost interest in the project, though the U.S. Air Force would eventuall -
George Stibitz circa 1940
The Relay Interpolator is completed. The U.S. Army asked Bell Labs to design a machine to assist in testing its M-9 Gun Director. Bell Labs mathematician George Stibitz recommended using a relay-based calculator for the project. The result was the Relay Interpolator, later called the Bell Labs Model II. The Relay Interpolator used 440 relays and since it was programmable by paper tape, it was used for other applications following the war. -
Harvard Mark-I in use, 1944
Harvard Mark-1 is completed. Conceived by Harvard professor Howard Aiken, and designed and built by IBM, the Harvard Mark-1 was a room-sized, relay-based calculator. The machine had a fifty-foot long camshaft that synchronized the machine’s thousands of component parts. The Mark-1 was used to produce mathematical tables but was soon superseded by stored program computers. -

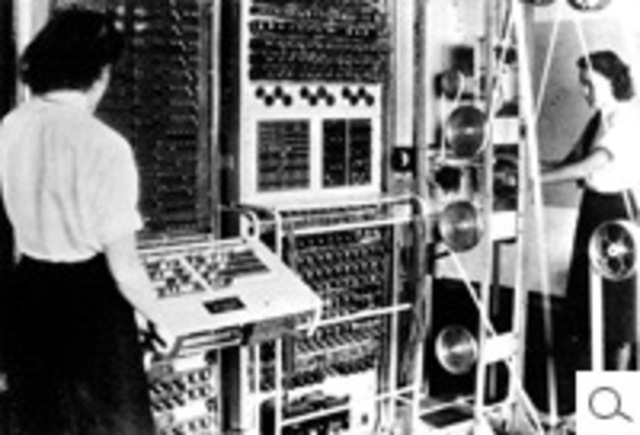

The Colossus at Work At Bletchley Park
The first Colossus is operational at Bletchley Park. Designed by British engineer Tommy Flowers, the Colossus was designed to break the complex Lorenz ciphers used by the Nazis during WWII. A total of ten Colossi were delivered to Bletchley, each using 1,500 vacuum tubes and a series of pulleys transported continuous rolls of punched paper tape containing possible solutions to a particular code. Colossus reduced the time to break Lorenz messages from weeks to hours. The machine’s existence was n -
John von Neumann
John von Neumann wrote "First Draft of a Report on the EDVAC" in which he outlined the architecture of a stored-program computer. Electronic storage of programming information and data eliminated the need for the more clumsy methods of programming, such as punched paper tape — a concept that has characterized mainstream computer development since 1945. Hungarian-born von Neumann demonstrated prodigious expertise in hydrodynamics, ballistics, meteorology, game theory, statistics, and the use of m -
Grace Hopper
On September 9th, Grace Hopper recorded the first actual computer "bug" — a moth stuck between the relays and logged at 15:45 hours on the Harvard Mark II. Hopper, a rear admiral in the U.S. Navy, enjoyed successful careers in academia, business, and the military while making history in the computer field. She helped program the Harvard Mark I and II and developed the first compiler, A-0. Her subsequent work on programming languages led to COBOL, a language specified to operate on machines of di -
Konrad Zuse
Konrad Zuse began work on Plankalkul (Plan Calculus), the first algorithmic programming language, with an aim of creating the theoretical preconditions for the formulation of problems of a general nature. Seven years earlier, Zuse had developed and built the world´s first binary digital computer, the Z1. He completed the first fully functional program-controlled electromechanical digital computer, the Z3, in 1941. Only the Z4 — the most sophisticated of his creations — survived World War II. -
ENIAC
In February, the public got its first glimpse of the ENIAC, a machine built by John Mauchly and J. Presper Eckert that improved by 1,000 times on the speed of its contemporaries.
Start of project: 1943
Completed: 1946
Programmed: plug board and switches
Speed: 5,000 operations per second
Input/output: cards, lights, switches, plugs
Floor space: 1,000 square feet
Project leaders: John Mauchly and J. Presper Eckert. -

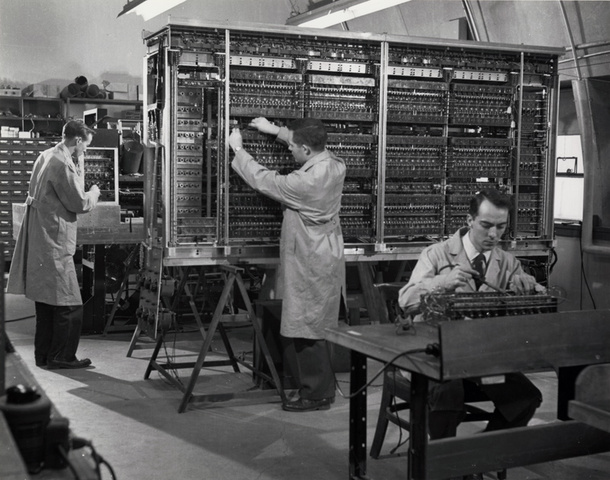

AVIDAC
An inspiring summer school on computing at the University of Pennsylvania´s Moore School of Electrical Engineering stimulated construction of stored-program computers at universities and research institutions. This free, public set of lectures inspired the EDSAC, BINAC, and, later, IAS machine clones like the AVIDAC. Here, Warren Kelleher completes the wiring of the arithmetic unit components of the AVIDAC at Argonne National Laboratory. Robert Dennis installs the inter-unit wiring as James Wood -

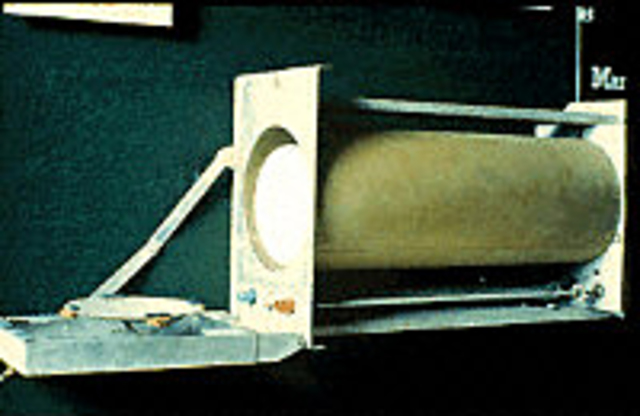

Williams tube
The Williams tube won the race for a practical random-access memory. Sir Frederick Williams of Manchester University modified a cathode-ray tube to paint dots and dashes of phosphorescent electrical charge on the screen, representing binary ones and zeros. Vacuum tube machines, such as the IBM 701, used the Williams tube as primary memory. -

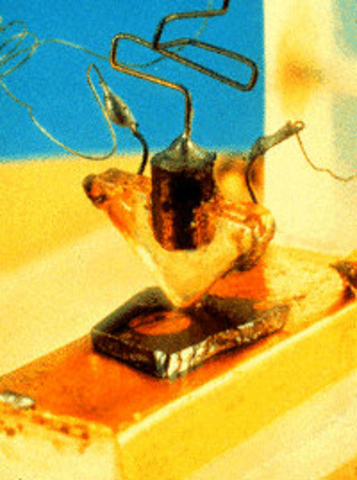

Point-contact transistor
On December 23, William Shockley, Walter Brattain, and John Bardeen successfully tested this point-contact transistor, setting off the semiconductor revolution. Improved models of the transistor, developed at AT&T Bell Laboratories, supplanted vacuum tubes used on computers at the time. -

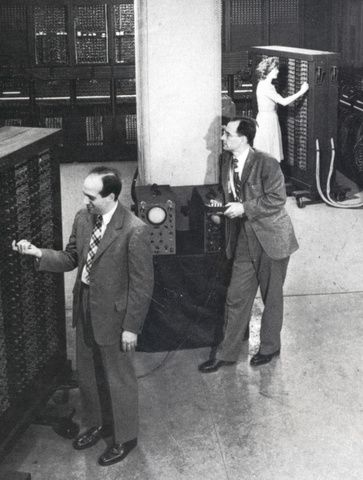

Eckert and Mauchly with the ENIAC
Computer pioneers Presper Eckert and John Mauchly founded the Eckert-Mauchly Computer Corp. to construct machines based on their experience with ENIAC and EDVAC. The only machine the company built was BINAC. Before completing the UNIVAC, the company became a division of Remington Rand. -

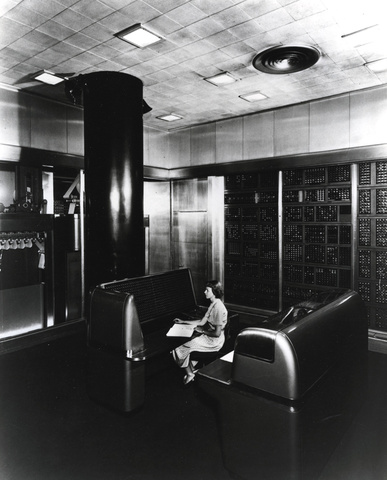

IBM´s SSEC
IBM´s Selective Sequence Electronic Calculator computed scientific data in public display near the company´s Manhattan headquarters. Before its decommissioning in 1952, the SSEC produced the moon-position tables used for plotting the course of the 1969 Apollo flight to the moon.
Speed: 50 multiplications per second
Input/output: cards, punched tape
Memory type: punched tape, vacuum tubes, relays
Technology: 20,000 relays, 12,500 vacuum tubes
Floor space: 25 feet by 40 feet
Project leader: Wallac -
Norbert Wiener
Norbert Wiener published "Cybernetics," a major influence on later research into artificial intelligence. He drew on his World War II experiments with anti-aircraft systems that anticipated the course of enemy planes by interpreting radar images. Wiener coined the term "cybernetics" from the Greek word for "steersman." In addition to "cybernetics," historians note Wiener for his analysis of brain waves and for his exploration of the similarities between the human brain and the modern computing -
Claude Shannon
Claude Shannon´s "The Mathematical Theory of Communication" showed engineers how to code data so they could check for accuracy after transmission between computers. Shannon identified the bit as the fundamental unit of data and, coincidentally, the basic unit of computation. -

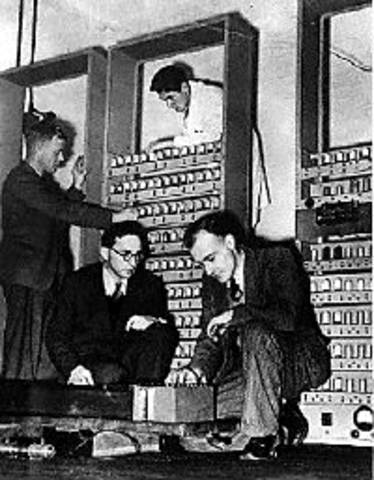

Wilkes with the EDSAC
Maurice Wilkes assembled the EDSAC, the first practical stored-program computer, at Cambridge University. His ideas grew out of the Moore School lectures he had attended three years earlier. For programming the EDSAC, Wilkes established a library of short programs called subroutines stored on punched paper tapes.
Technology: vacuum tubes
Memory: 1K words, 17 bits, mercury delay line
Speed: 714 operations per second -
Manchester Mark I
The Manchester Mark I computer functioned as a complete system using the Williams tube for memory. This University machine became the prototype for Ferranti Corp.´s first computer.
Start of project: 1947
Completed: 1949
Add time: 1.8 microseconds
Input/output: paper tape, teleprinter, switches
Memory size: 128 + 1024 40-digit words
Memory type: cathode ray tube, magnetic drum
Technology: 1,300 vacuum tubes
Floor space: medium room
Project leaders: Frederick Williams and Tom Kilburn -
People & Pop Culture
Thomas Watson Jr., speaking to an IBM sales meeting, predicted all moving parts in machines would be replaced by electronics within a decade. -
Pilot ACE
Alan Turing´s philosophy directed design of Britain´s Pilot ACE at the National Physical Laboratory. "We are trying to build a machine to do all kinds of different things simply by programming rather than by the addition of extra apparatus," Turing said at a symposium on large-scale digital calculating machinery in 1947 in Cambridge, Mass.
Start of project: 1948
Completed: 1950
Add time: 1.8 microseconds
Input/output: cards
Memory size: 352 32-digit words
Memory type: delay lines
Technology: 800 -

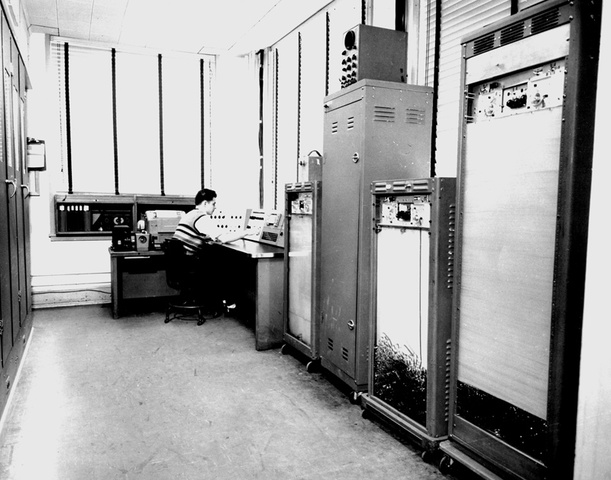

SWAC
The National Bureau of Standards constructed the SEAC (Standards Eastern Automatic Computer) in Washington as a laboratory for testing components and systems for setting computer standards. The SEAC was the first computer to use all-diode logic, a technology more reliable than vacuum tubes, and the first stored-program computer completed in the United States. Magnetic tape in the external storage units (shown on the right of this photo) stored programming information, coded subroutines, numerica -

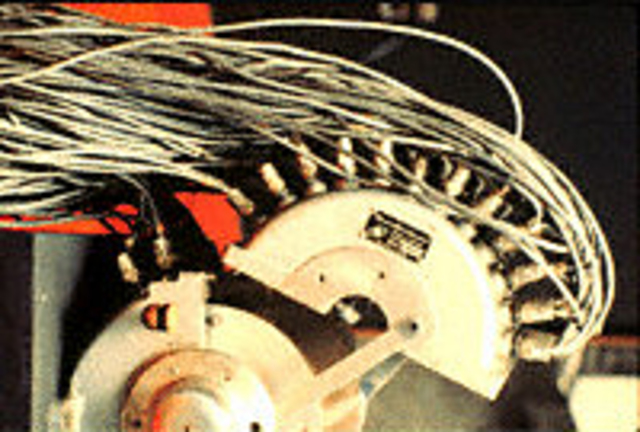

ERA 1101 drum memory
Engineering Research Associates of Minneapolis built the ERA 1101, the first commercially produced computer; the company´s first customer was the U.S. Navy. It held 1 million bits on its magnetic drum, the earliest magnetic storage devices. Drums registered information as magnetic pulses in tracks around a metal cylinder. Read/write heads both recorded and recovered the data. Drums eventually stored as many as 4,000 words and retrieved any one of them in as little as five-thousandths of a second -

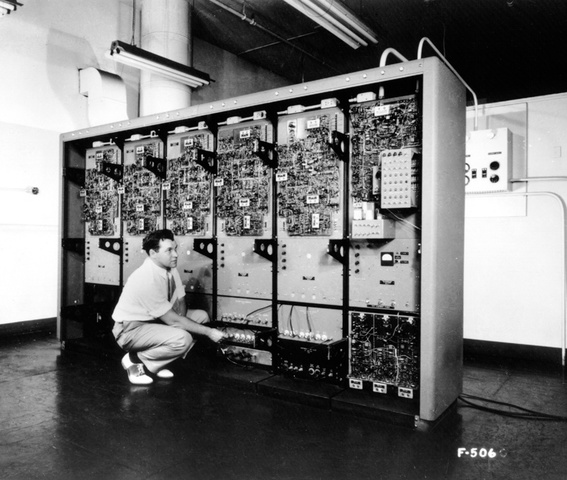

MIT Whirlwind
MIT´s Whirlwind debuted on Edward R. Murrow´s "See It Now" television series. Project director Jay Forrester described the computer as a "reliable operating system," running 35 hours a week at 90-percent utility using an electrostatic tube memory.
Start of project: 1945
Completed: 1951
Add time: Approx. 16 microseconds
Input/output: cathode ray tube, paper tape, magnetic tape
Memory size: 2048 16-digit words
Memory type: cathode ray tube, magnetic drum, tape (1953 - core memory)
Technology: 4,50 -

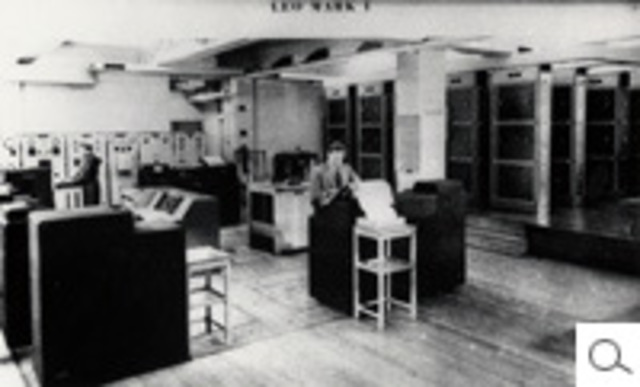

LEO
England´s first commercial computer, the Lyons Electronic Office, solved clerical problems. The president of Lyons Tea Co. had the computer, modeled after the EDSAC, built to solve the problem of daily scheduling production and delivery of cakes to the Lyons tea shops. After the success of the first LEO, Lyons went into business manufacturing computers to meet the growing need for data processing systems. -

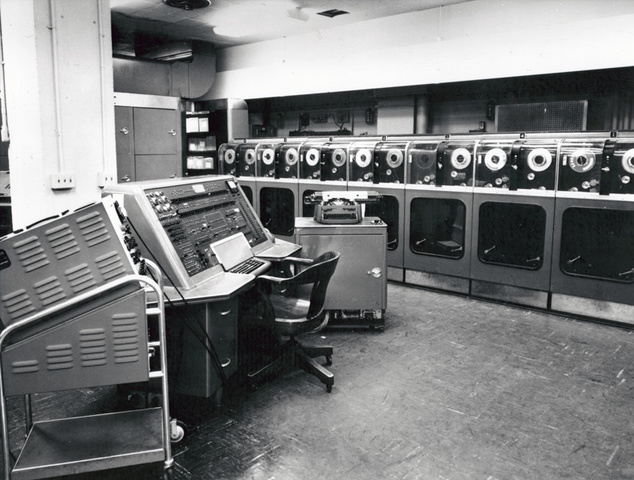

UNIVAC I
The UNIVAC I delivered to the U.S. Census Bureau was the first commercial computer to attract widespread public attention. Although manufactured by Remington Rand, the machine often was mistakenly referred to as the "IBM UNIVAC." Remington Rand eventually sold 46 machines at more than $1 million each.F.O.B. factory $750,000 plus $185,000 for a high speed printer.
Speed: 1,905 operations per second
Input/output: magnetic tape, unityper, printer
Memory size: 1,000 12-digit words in delay lines
Mem -
Companies
Heinz Nixdorf founded Nixdorf Computer Corp. in Germany. It remained an independent corporation until merging with Siemens in 1990. -

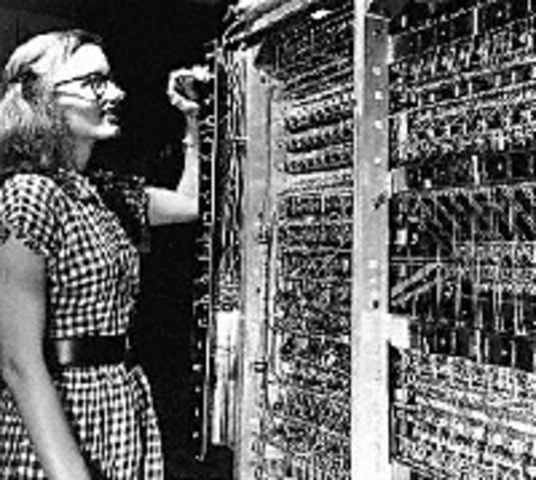

Los Alamos MANIAC
John von Neumann´s IAS computer became operational at the Institute for Advanced Studies in Princeton, N.J. Contract obliged the builders to share their designs with other research institutes. This resulted in a number of clones: the MANIAC at Los Alamos Scientific Laboratory, the ILLIAC at the University of Illinois, the Johnniac at Rand Corp., the SILLIAC in Australia, and others. -
Grace Hopper with UNIVAC 1
Grace Hopper completes the A-0 Compiler. In 1952, mathematician Grace Hopper completed what is considered to be the first compiler, a program that allows a computer user to use English-like words instead of numbers. Other compilers based on A-0 followed: ARITH-MATIC, MATH-MATIC and FLOW-MATIC [software] -

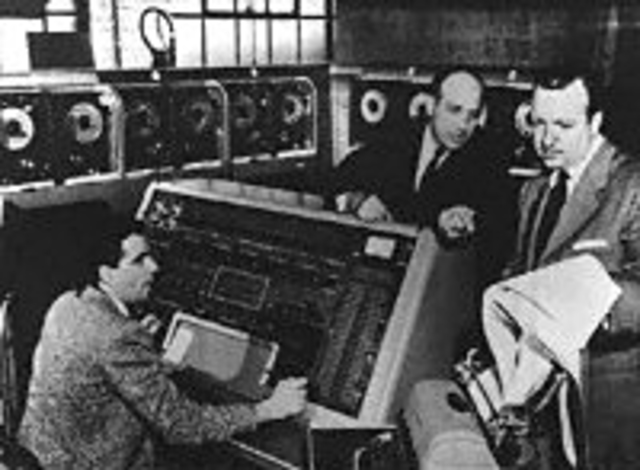

Cronkite with UNIVAC
On election night, November 4, CBS News borrowed a UNIVAC to make a scientific prediction of the outcome of the race for the presidency between Dwight D. Eisenhower and Adlai Stevenson. The opinion polls predicted a landslide in favor of Stevenson, but the UNIVAC´s analysis of early returns showed a clear victory for Eisenhower. Its sharp divergence from public opinion made newscasters Walter Cronkite and Charles Collingwood question the validity of the computer´s forecast, so they postponed ann -
Grace Hopper with UNIVAC 1
Grace Hopper completes the A-0 Compiler. In 1952, mathematician Grace Hopper completed what is considered to be the first compiler, a program that allows a computer user to use English-like words instead of numbers. Other compilers based on A-0 followed: ARITH-MATIC, MATH-MATIC and FLOW-MATIC [software] -
Cronkite with UNIVAC
On election night, November 4, CBS News borrowed a UNIVAC to make a scientific prediction of the outcome of the race for the presidency between Dwight D. Eisenhower and Adlai Stevenson. The opinion polls predicted a landslide in favor of Stevenson, but the UNIVAC´s analysis of early returns showed a clear victory for Eisenhower. Its sharp divergence from public opinion made newscasters Walter Cronkite and Charles Collingwood question the validity of the computer´s forecast, so they postponed ann -
Core memory
At MIT, Jay Forrester installed magnetic core memory on the Whirlwind computer. Core memory made computers more reliable, faster, and easier to make. Such a system of storage remained popular until the development of semiconductors in the 1970s. -

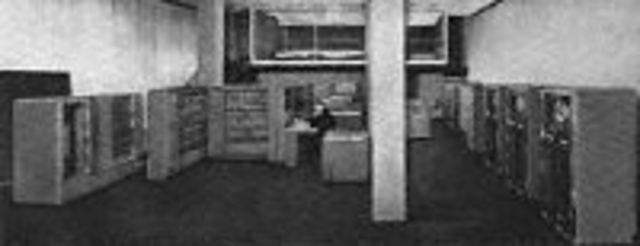

IBM 701
IBM shipped its first electronic computer, the 701. During three years of production, IBM sold 19 machines to research laboratories, aircraft companies, and the federal government. -
IBM 701
John Backus completed speedcoding for IBM´s 701 computer. Although speedcoding demanded more memory and compute time, it trimmed weeks off of the programming schedule. -

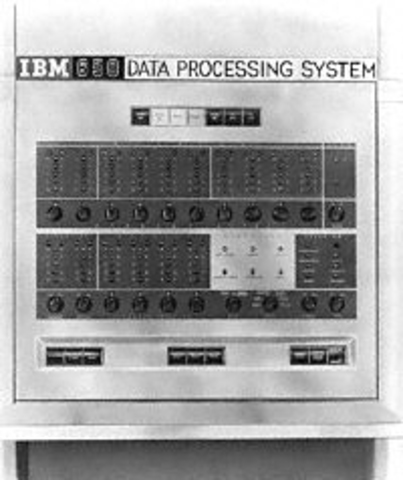

IBM 650
The IBM 650 magnetic drum calculator established itself as the first mass-produced computer, with the company selling 450 in one year. Spinning at 12,500 rpm, the 650´s magnetic data-storage drum allowed much faster access to stored material than drum memory machines. -

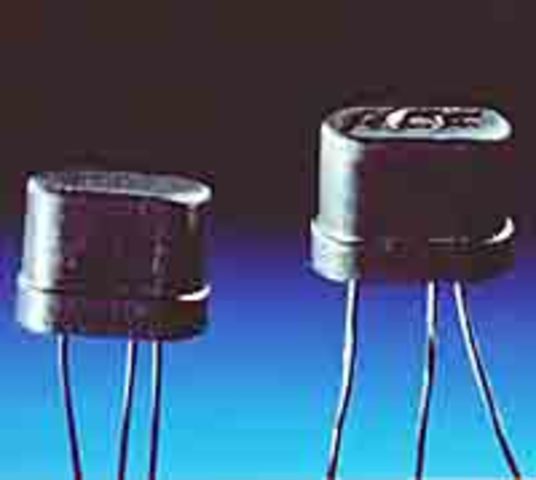

First production silicon junction transistors
A silicon-based junction transistor, perfected by Gordon Teal of Texas Instruments Inc., brought the price of this component down to $2.50. A Texas Instruments news release from May 10, 1954, read, "Electronic "brains" approaching the human brain in scope and reliability came much closer to reality today with the announcement by Texas Instruments Incorporated of the first commercial production of silicon transistors kernel-sized substitutes for vacuum tubes." The company became a household name -
Alan Turing
Alan Turing was found dead at age 42. He had published his seminal paper, "On Computable Numbers," in 1936, as well as posing significant questions about judging "human intelligence" and programming and working on the design of several computers during the course of his career. A mathematical genius, Turing proved instrumental in code-breaking efforts during World War II. His application of logic to that realm would emerge even more significantly in his development of the concept of a "universa -
People & Pop Culture
First meeting of SHARE, the IBM users group, convened. User groups became a significant educational force allowing companies to communicate innovations and users to trade information -

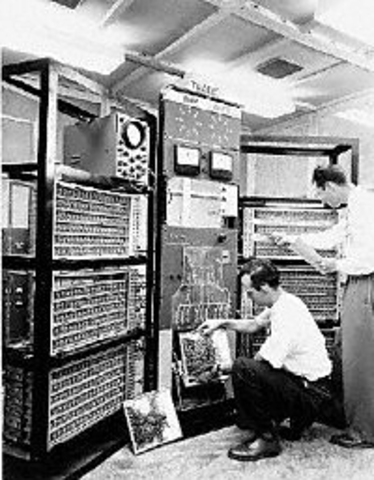

Felker and Harris program TRADIC
Felker and Harris program TRADIC, AT&T Bell Laboratories announced the first fully transistorized computer, TRADIC. It contained nearly 800 transistors instead of vacuum tubes. Transistors — completely cold, highly efficient amplifying devices invented at Bell Labs — enabled the machine to operate on fewer than 100 watts, or one-twentieth the power required by comparable vacuum tube computers. In this photograph, J. H. Felker (left) gives instructions to the TRADIC computer by means of a plug-i -
Software & Languages
Herbert Simon and Allen Newell unveiled Logic Theorist software that supplied rules of reasoning and proved symbolic logic theorems. The release of Logic Theorist marked a milestone in establishing the field of artificial intelligence. -

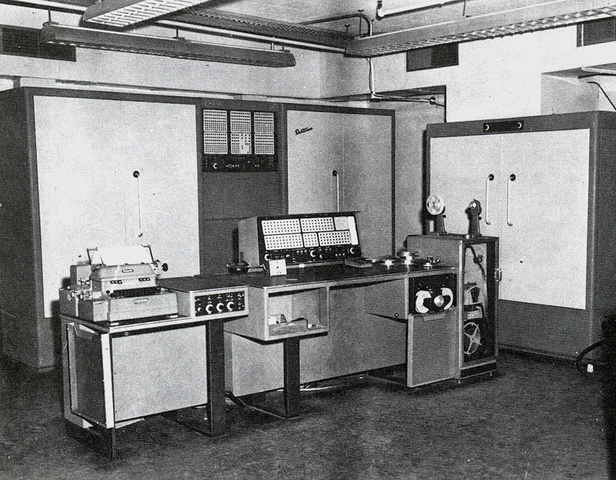

ElectroData computer in use, 1955
Burroughs buys Electrodata. Calculator manufacturer Burroughs gained entry to the computer industry by purchasing the southern California company Electrodata Corporation. The combined firm became a giant in the calculating machine business and expanded into electronics and digital computers when these technologies developed. Burroughs created many computer systems in the 1960s and 1970s and eventually merged with the makers of the Sperry Rand (maker of Univac computers) to form Unisys. -
IBM's Rey Johnson in front of RAMAC 350 Disk File
The era of magnetic disk storage dawned with IBM´s shipment of a 305 RAMAC to Zellerbach Paper in San Francisco. The IBM 350 disk file served as the storage component for the Random Access Method of Accounting and Control. It consisted of 50 magnetically coated metal platters with 5 million bytes of data. The platters, stacked one on top of the other, rotated with a common drive shaft. -
MIT TX0
MIT researchers built the TX-0, the first general-purpose, programmable computer built with transistors. For easy replacement, designers placed each transistor circuit inside a "bottle," similar to a vacuum tube. Constructed at MIT´s Lincoln Laboratory, the TX-0 moved to the MIT Research Laboratory of Electronics, where it hosted some early imaginative tests of programming, including a Western movie shown on TV, 3-D tic-tac-toe, and a maze in which mouse found martinis and became increasingly in -
Software & Languages
In the mid-fifties resources for scientific and engineering computing were in short supply and were very precious. The first operating system for the IBM 704 reflected the cooperation of Bob Patrick of General Motors Research and Owen Mock of North American Aviation. Called the GM-NAA I/O System, it provided batch processing and increased the number of completed jobs per shift with no increase in cost. Some version of the system was used in about forty 704 installations. -
MIT Whirlwind
At MIT, researchers began experimentation on direct keyboard input on computers, a precursor to today´s normal mode of operation. Doug Ross wrote a memo advocating direct access in February; five months later, the Whirlwind aided in such an experiment. -

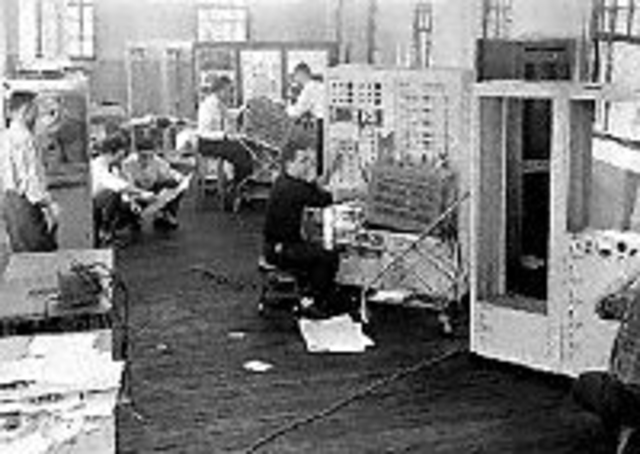

Digital Equipment Corp.
A group of engineers led by Ken Olsen left MIT´s Lincoln Laboratory founded a company based on the new transistor technology. In August, they formally created Digital Equipment Corp. It initially set up shop in a largely vacant woolen mill in Maynard, Mass., where all aspects of product development — from management to manufacturing — took place. -
CDC 1604
In Minneapolis, the original Engineering Research Associates group led by Bill Norris left Sperry Rand to form a new company, Control Data Corp., which soon released its model 1604 computer. -

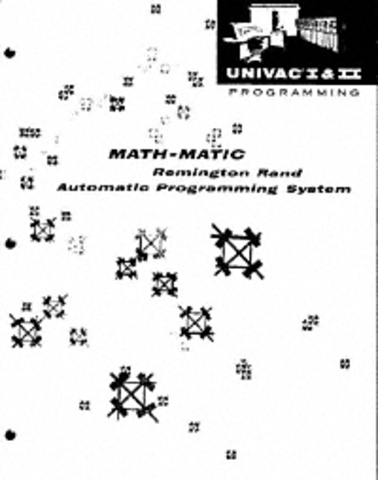

UNIVAC MATH-MATIC
Sperry Rand released a commercial compiler for its UNIVAC. Developed by Grace Hopper as a refinement of her earlier innovation, the A-0 compiler, the new version was called MATH-MATIC. Earlier work on the A-0 and A-2 compilers led to the development of the first English-language business data processing compiler, B-0 (FLOW-MATIC), also completed in 1957. FLOW-MATIC served as a model on which to build with input from other sources. -

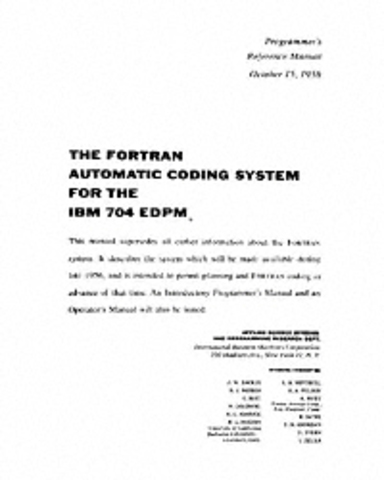

IBM 704 FORTRAN
A new language, FORTRAN (short for FORmula TRANslator), enabled a computer to perform a repetitive task from a single set of instructions by using loops. The first commercial FORTRAN program ran at Westinghouse, producing a missing comma diagnostic. A successful attempt followed.
