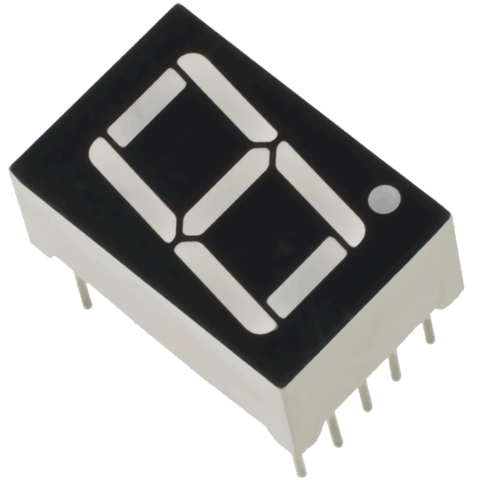

7 segment led

COMPUTER ENGINEERING CULMINATING

By _saif
  • Create Truth Table

    Create Truth Table

    Was introduced to the problem, and began creating a truth table.
  • Period: to

    Culminating Project

  • Create K-MAP

    Create K-MAP

    Created a K Map to simplify my truth table.

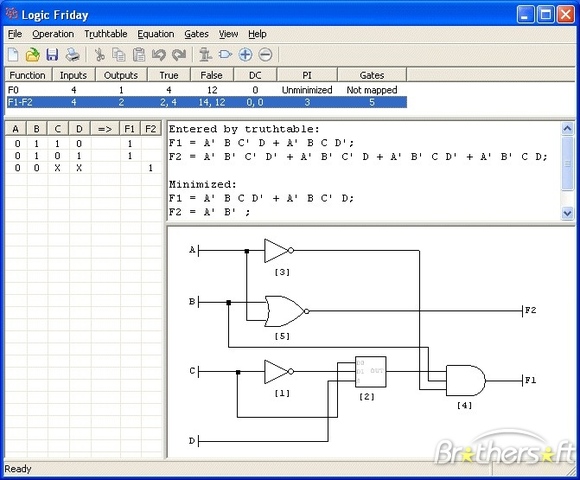

  • Logic Friday

    Logic Friday

    Created logic friday diagram of reduced truth table. Tested to see whether it was correct or not.

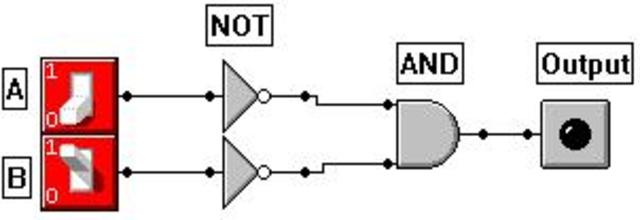

  • Multimedia Logic

    Multimedia Logic

    Converted my Logic Friday diagram to a multimedia logic diagram.
  • Created a fritzing diagram

    Created a fritzing diagram

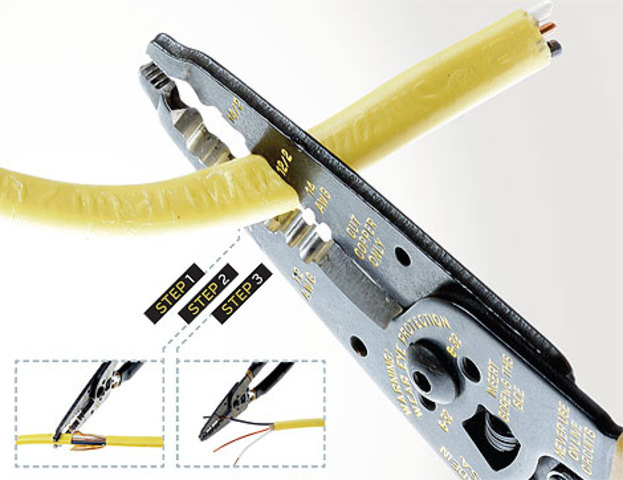

  • Stripping Wires

    Stripping Wires

    This was in preparation of building.

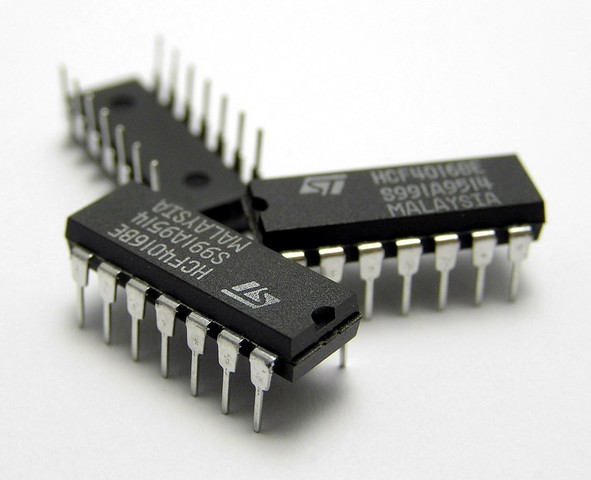

  • Created and Submitted IC list

    Created and Submitted IC list

  • Began Building the Circuit

    Began Building the Circuit

    The was the first day of building.
  • Trouble shooting

    Trouble shooting

    This is when I tested the circuit and tried to fix any errors.
  • Began Documentation

    Began Documentation

    Yes, this is the day before it was due.
  • Finished Course

    Finished Course

    Handed in the documentation and finished the circuit.
