NASA Rocket Timeline | Chris Lambert | SCI 240

By clambert006

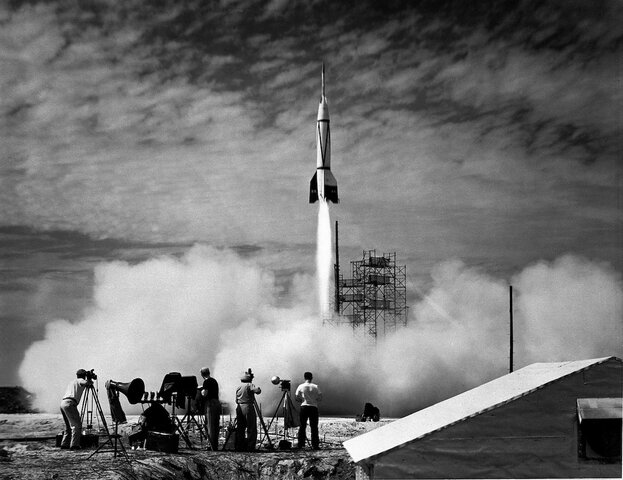

  • Image of V2 Rocket

    Image of V2 Rocket

  • Period: to

    V2 Rocket

    Function: First large-scale liquid propellant rocket, launched the space race, first long-range ballistic missile
    Height: 14 meters
    Diameter: 1.6 meters
    Mass: About 8428 pounds (8427.9 pounds)
    How many stages: This was a single stage rocket
  • Period: to

    Juno I

    Function: Launching light objects into low Earth orbit
    Height: 21.2 meters
    Diameter: 1.78 meters
    Mass: 64,070 pounds
    Stages: This had four stages
  • Period: to

    Juno II

    Function: Used to launch probes and satellites
    Height: 24 meters
    Diameter: 2.67 meters
    Mass: 121,500 pounds
    Stages: This had 3 to 4 stages

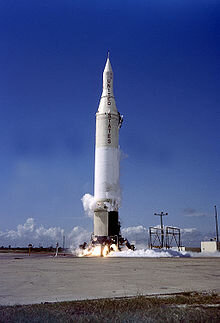

  • Image of a Juno I Rocket

    Image of a Juno I Rocket

  • Image of Juno II Rocket

    Image of Juno II Rocket

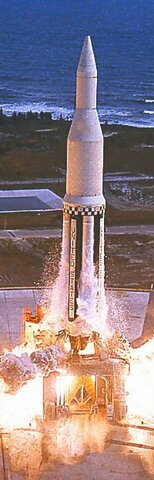

  • Image of Saturn I

    Image of Saturn I

  • Period: to

    Saturn I

    Function: Designed to be the first launch vehicle for up to 20,000 pound payload. Saturn rocket series used liquid hydrogen as fuel for the upper stages
    Height: 55 meters
    Diameter: 6.60 meters
    Mass: 1,124,000 pounds
    Stages: 2
  • Period: to

    Saturn V

    Function: Carried humans beyond low Earth orbit and to the Moon!
    Height: 110.6 meters
    Diameter: 10.1 meters
    Mass: Varied between 6,221,000 – 6,537,000 pounds
    Stages: 3

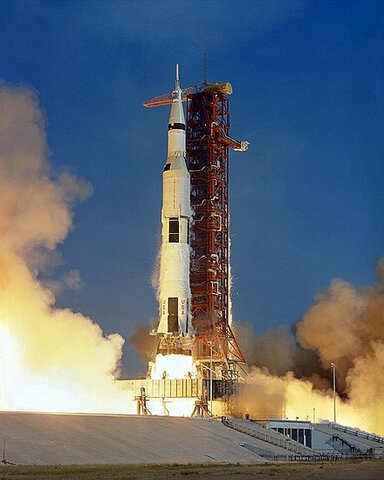

  • Image of Saturn V Rocket

    Image of Saturn V Rocket

    Apollo 11 launch to the moon!
  • Period: to

    Titan IIIE (Titan 3E)

    Function: Launched the Voyager probes and Viking probes.
    Height: 48.8 meters
    Diameter: 3.05 meters
    Mass: 1,395,460 pounds
    Stages: This had 3 stages, and had an option for a 4th

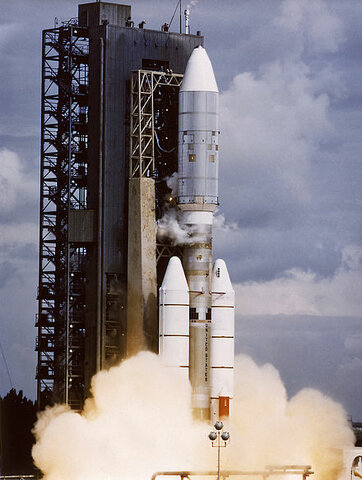

  • Image of the Titan IIIE

    Image of the Titan IIIE

    The Voyager probes are the farthest human made objects in space! They are in interstellar space and can still communicate with Earth.
  • Period: to

    Space Shuttle

    Function: This craft allowed for a human crew that allowed for re-entry
    Height: 56.1 meters
    Diameter: 8.7 meters
    Mass: 4,480,000 pounds
    Stages: 2
  • Period: to

    Athena I

    Function: Placed a number of satellites in orbit. First orbital launch from Kodiak Island
    Height: 18.9 meters
    Diameter: 2.36 meters
    Mass: 146,200 pounds
    Stages: 3

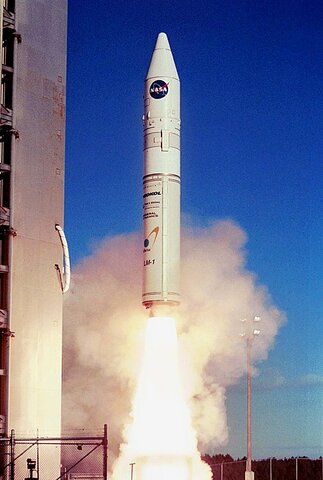

  • Image of Athena I

    Image of Athena I

  • Period: to

    Atlas V

    Function: Launched exploration spacecraft and satellites
    Height: 52.4 meters to 58.3 meters
    Diameter: 3.81 meters
    Mass: 1,300,000 pounds
    Stages: 2-3

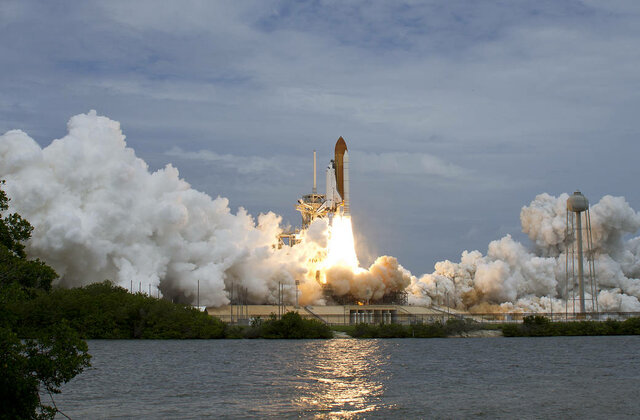

  • Image of the Space Shuttle

    Image of the Space Shuttle

    This is an image of the shuttle Atlantis, which was the final launch for the Space Shuttle

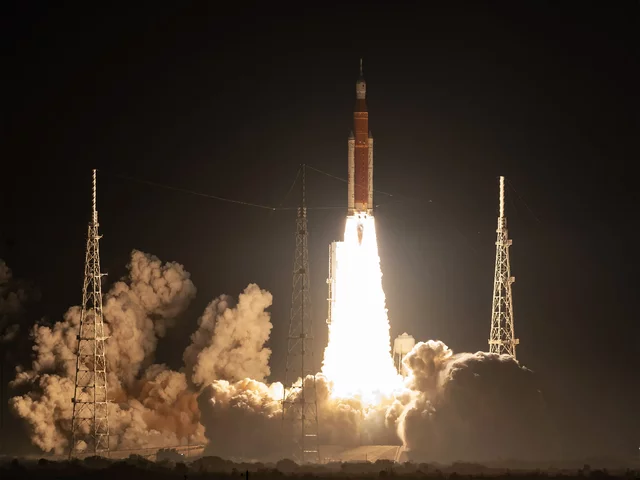

  • Image of Space Launch System

    Image of Space Launch System

    This is the latest rocket system in use from NASA. It is going to bring humans back to the moon!

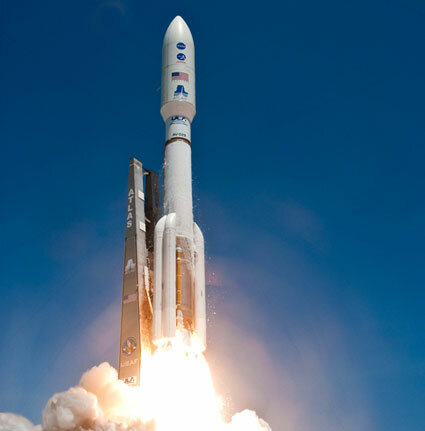

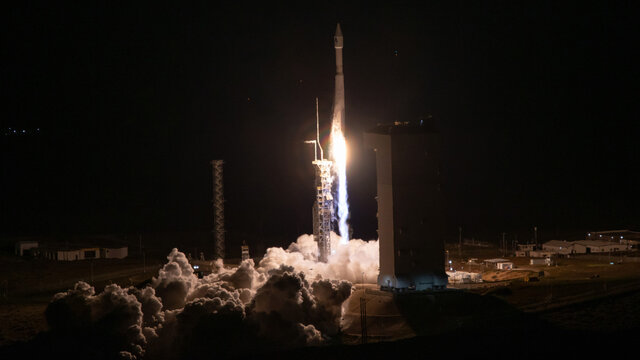

  • Image of Atlas V

    Image of Atlas V

    The final launch was for a National Oceanic and Atmospheric Administration satellite.
  • Period: to

    Space Launch System

    Function: It is being used for the ongoing Artemis moon program
    Height: Between 98 meters to 111 meters
    Diameter: Between 5.1-8.4 meters
    Mass: 5,750,000 pounds
    Stages: 2
