The Wheel

Timeline created by justin.thach in Science and Technology
Event Date: Event Title: Event Description:

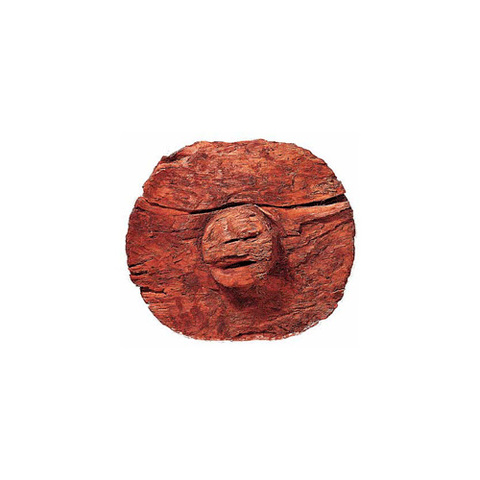

History of the wheel 7334 1 1 100 Invention of the Wheel Researchers believe the wheel was invented in the year 3500 BC. This wasn't the exact year, but its pretty close.
W char2 1 200 Transportation In Mesopotamia, now current Iraq, is where the first wheel for transportation purposes where used. It was the year 3200 BC, the wheels were used to move Mesopotamian chariots.
History of the wheel 7334 7 1 300 Wooden Spoked Wheel The demand for faster transportation with the use of less material made this innovation reach its highest point. The Egyptians were said to be the first to make the wooden spoked wheel in 2000 BC on their chariots.
1361c lg 1 400 Iron Spoked Wheel Stoked wheels with iron rim around them were first seen with the Celtics in 1000 BC. The Celtics used this innovation on their chariots.

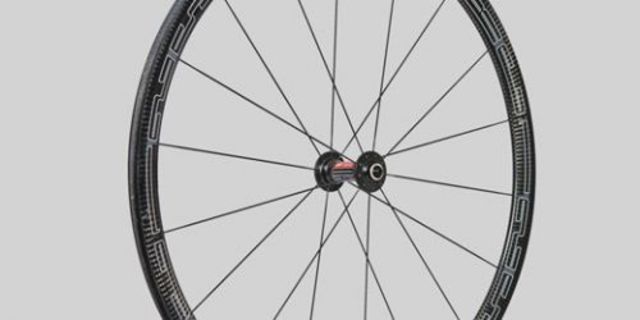

Dt swiss wheelset 2 Wire Tension Spoke The spoked wheel didn't really change over the years until 1802. In 1802, G.F. Bauer got a patent for the first wire spoked wheel. This wire spoke consisted of a length of wire threaded through the rim of the wheel and secured at both ends to the hub. Over the years, the wire spoked evolved into the round tension spoke.

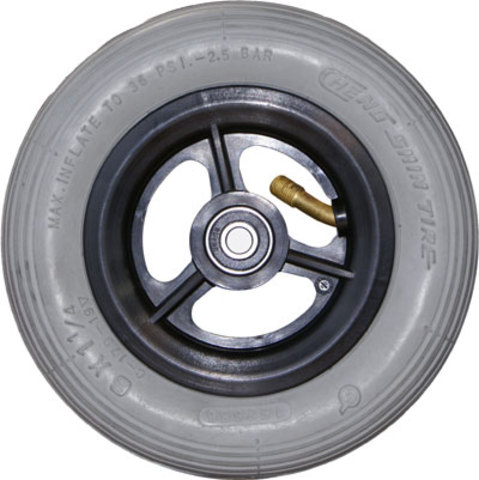

6 pneumatic 1 Pneumatic Tire The pneumatic tire, a tire made of reinforced rubber and filled with compressed air, was first to be patented by R.W. Thompson in 1845.Thompson's idea was soon innovated in 1888 by John Dunlop. Dunlop also patented his idea. Dunlop's tire soon replaced the the hard rubber tire used at that time.
Benz patent motorwagen 1886 %28replica%29 1 Automobile Wheels In 1885, Karl Benz patented his automobile design, the Motorwagen. It was a three-wheel vehicle, that used bicycle-like wire wheels, which were fitted with hard rubber.
Top pic 2 B.F. Goodrich Company The B.F Company was found by André and Edouard Michelin. B.F. Goodrich Company invented longer lasting tires by adding carbon to the rubber.

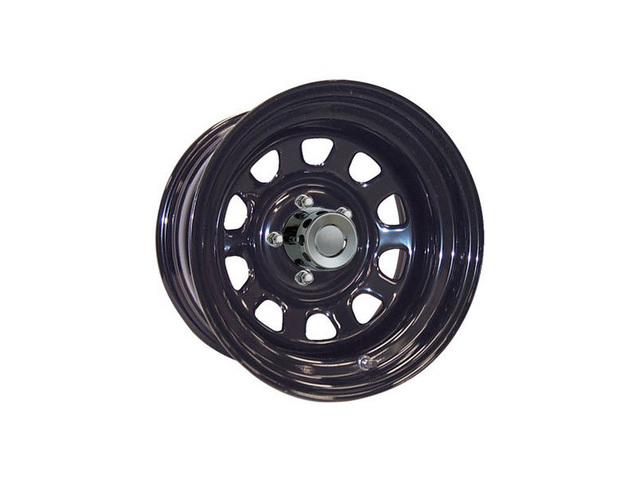

History of the wheel 7334 5 1 Steel Welded-Spoke Steel wheels are constructed with metal.The design has a steel hub, and steel wires connecting the hub to the rim. The steel wheels provides greater overall resiliency to road defects, and more comfort to passengers
Alloy wheel mercury 1 Alloy Wheels Alloy wheels are lighter then steel wheels, but it provides the same strength. It also provide better heat conduction and it has a better look then the steel wheel.

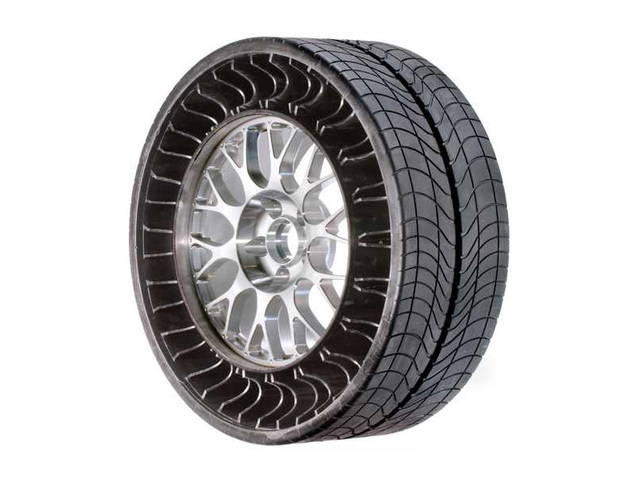

History of the wheel 7334 3 1 Tweel The tweel was first announced on 2006. Like the first design, the tweel did not use a pneumatic solution. The rolling surface has a rubber tread, which is bonded to the hub from flexible spokes. Even though the tweel has many advantages, it also has a problem. When speed reaches to 50 mph, it causes vibration.
